Interlock 420HD A Series Friction Stay

Stock Code:
AAP1553B
Price:
$63.84 (Incl. GST)

Description

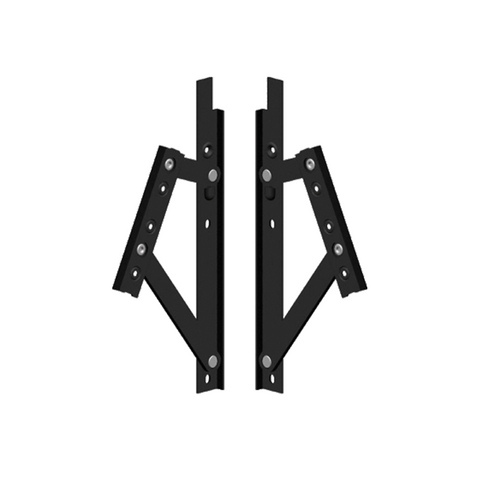

A range of 4-bar friction stays manufactured from extruded Aluminium. Used for residential applications the A-Series is suitable for sashes up to 43kg. 4-bar friction stays provide support and control of standard weight projected top hung (PTH) sashes. The A-Series friction hinges (stays) are manufactured from extruded aluminium and has no sliding channels.

Features:

  • Non-friction type
  • Manufactured with the unique inch pull-in inch feature
  • No sliding channels
  • Factory set friction levels thus no on-site adjustment needed
  • Incorporates the patented Interlock friction bearing
  • Supplied in trade pack as a pair

‘A’ = Full friction

Suitability:
  • Maximum sash height 1200mm
  • Opening angle 20°
  • Maximum sash weight 43kg

  • Maximum sash height 1500mm
  • Opening angle 20°
  • Maximum sash weight 20kg

  • Maximum sash height 1800mm
  • Opening angle 20°
  • Maximum sash weight 15kg

Details

  • Finish:
    Black
  • Material:
    Extruded Aluminium
  • Function:
    Window Stay
  • Brand:
    Interlock
  • Dimensions:
    As per image shown
