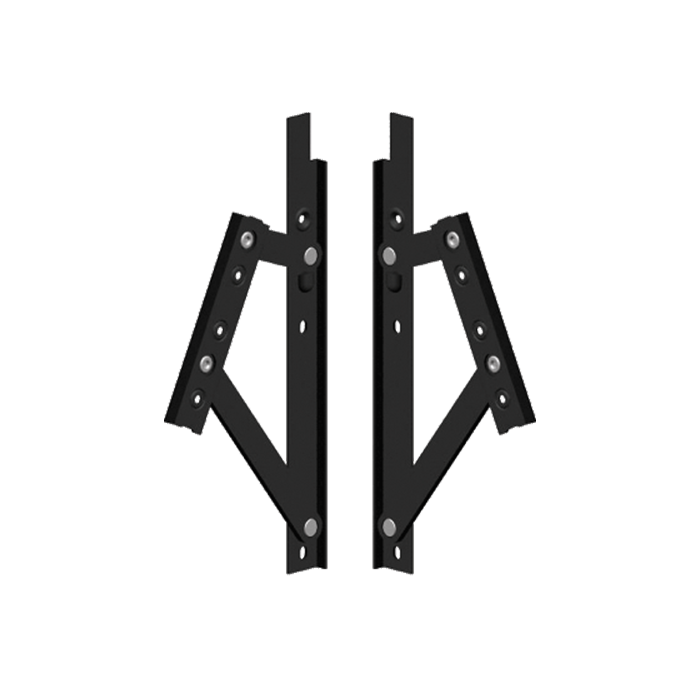

Interlock 420HD A Series Friction Stay
Stock Code:
AAP1553B
Price:
$63.84 (Incl. GST)
Description
A range of 4-bar friction stays manufactured from extruded Aluminium. Used for residential applications the A-Series is suitable for sashes up to 43kg.
4-bar friction stays provide support and control of standard weight projected top hung (PTH) sashes. The A-Series friction hinges (stays) are manufactured from extruded aluminium and has no sliding channels.
Features:
- Non-friction type
- Manufactured with the unique inch pull-in inch feature
- No sliding channels
- Factory set friction levels thus no on-site adjustment needed
- Incorporates the patented Interlock friction bearing
- Supplied in trade pack as a pair
‘A’ = Full friction
Suitability:
- Maximum sash height 1200mm
- Opening angle 20°
- Maximum sash weight 43kg
- Maximum sash height 1500mm
- Opening angle 20°
- Maximum sash weight 20kg
- Maximum sash height 1800mm
- Opening angle 20°
- Maximum sash weight 15kg
Details
-
Finish:Black
-
Material:Extruded Aluminium
-
Function:Window Stay
-
Brand:Interlock
-
Dimensions:As per image shown
