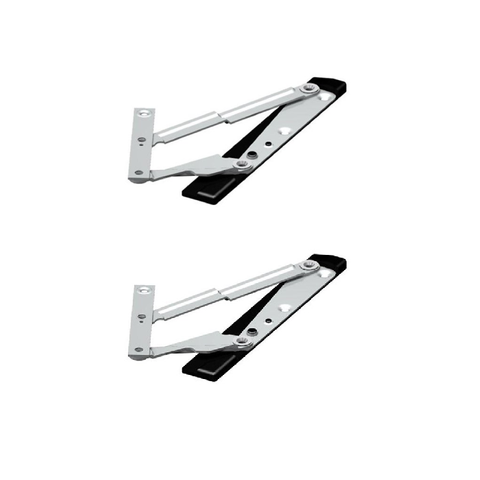

Interlock 4 Bar Casement Friction Stays
Stock Code:
AAP1090
Stock Code:
AAP1120
Stock Code:
AAP1080
Price:
$64.55 (Incl. GST)
Price:
$43.13 (Incl. GST)
Price:
$114.18 (Incl. GST)
*All fields must be selected to add to cart*
Description
A premier range of 4-bar friction hinges (stays) used for the support and frictional control of projecting side hung sashes. Manufactured from 304 grade austenitic stainless steel. A premier stay series available in 3 sizes for sashes in residential or light commercial applications.
Features:
- Full friction type
- Manufactured with the unique inch pull in inch feature
- No sliding channels
- Factory set friction levels
- Incorporates the patented Interlock friction bearing
- Supplied in trade pack as a pair
300:
- Maximum sash width 750mm
- Opening angle 56°
- Maximum sash weight 20kg
230:
- Maximum sash width 800mm
- Opening angle 90°
- Maximum sash weight 25kg
430:
- Maximum sash width 1000mm
- Opening angle 90°
- Maximum sash weight 40kg
Interlock 4 BC Friction Stay 230
Details
-
Material:Stainless Steel
-
Function:Window Stay
-
Brand:Interlock
-
Dimensions:As per image shown
Interlock 4 BC Friction Stay 300
Details
-
Material:Stainless Steel
-
Function:Window Stay
-
Brand:Interlock
-
Dimensions:As per image shown
Interlock 4 BC Friction Stay 430
Details
-
Material:Stainless Steel
-
Function:Window Stay
-
Brand:Interlock
-
Dimensions:As per image shown
